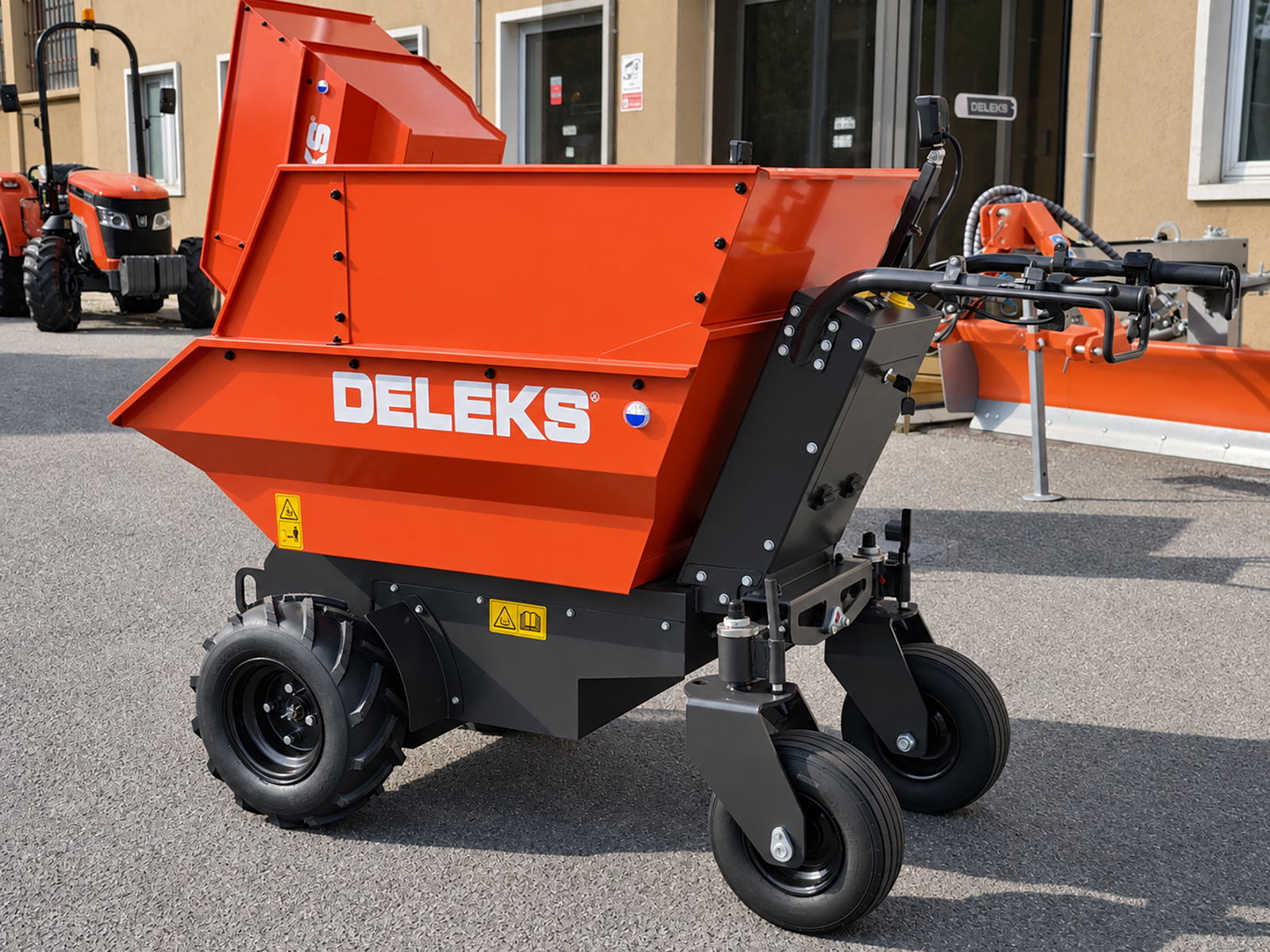

100% electric power barrow, lead-acid battery, with electric tipping dumper body

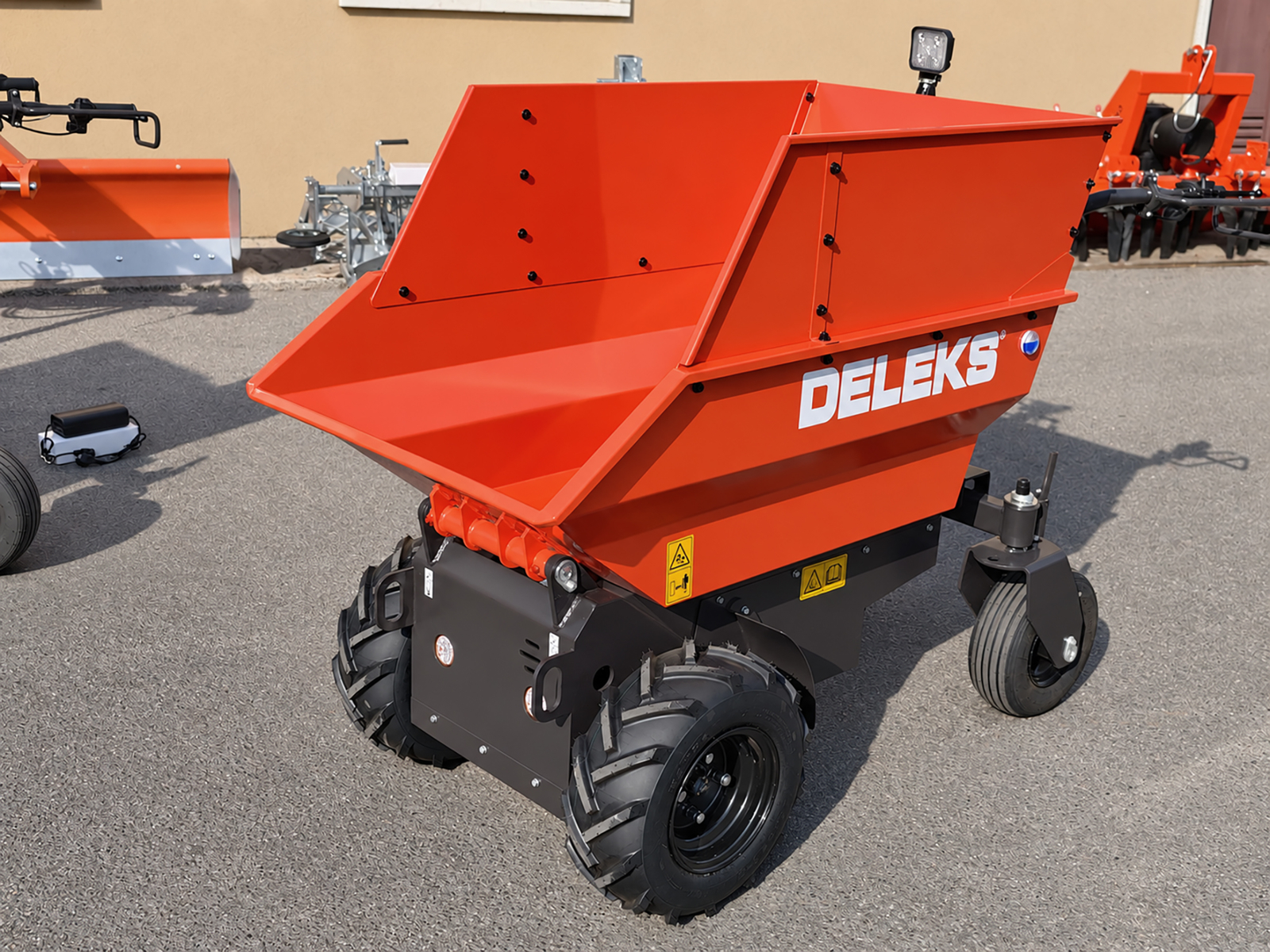

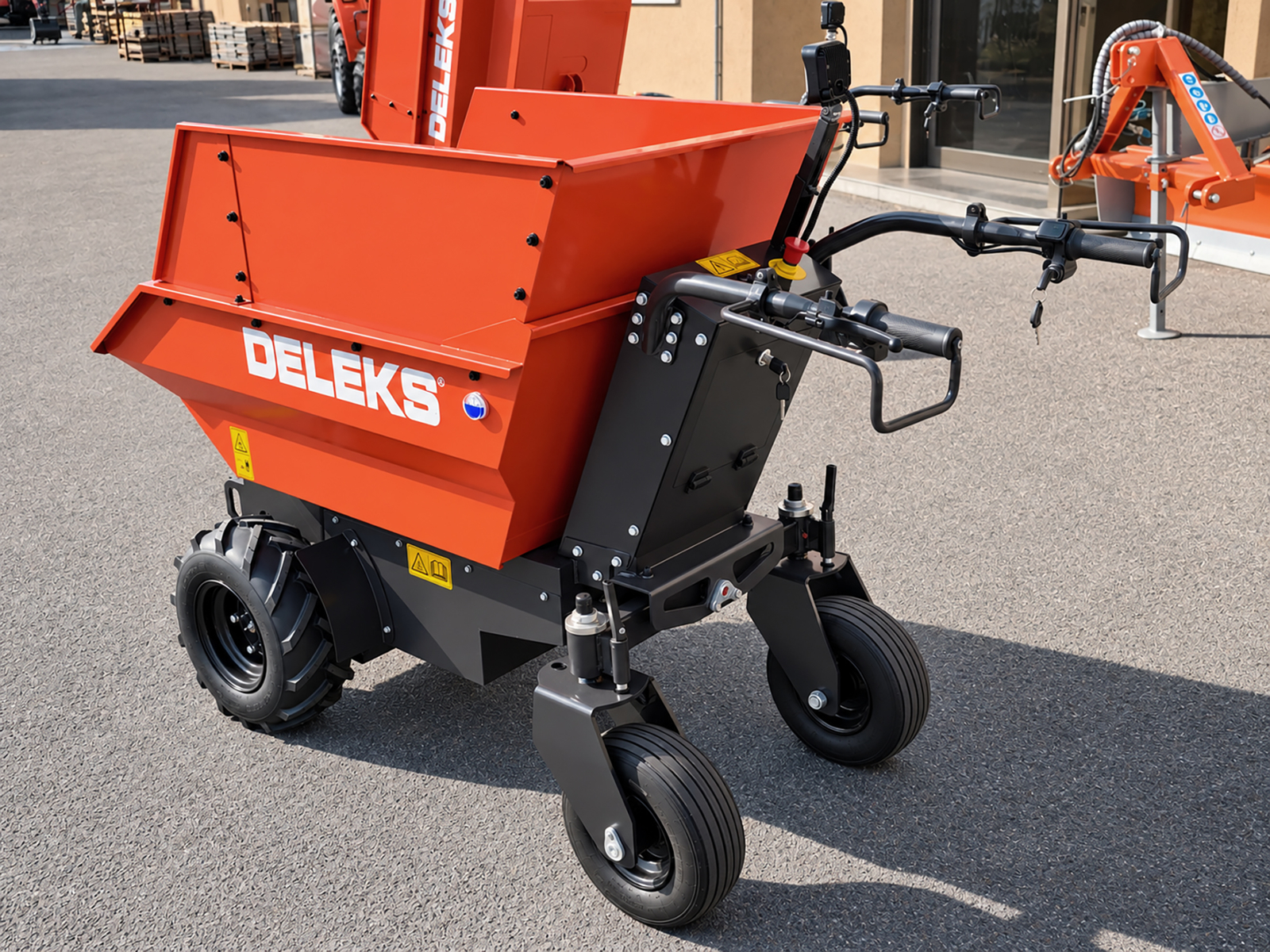

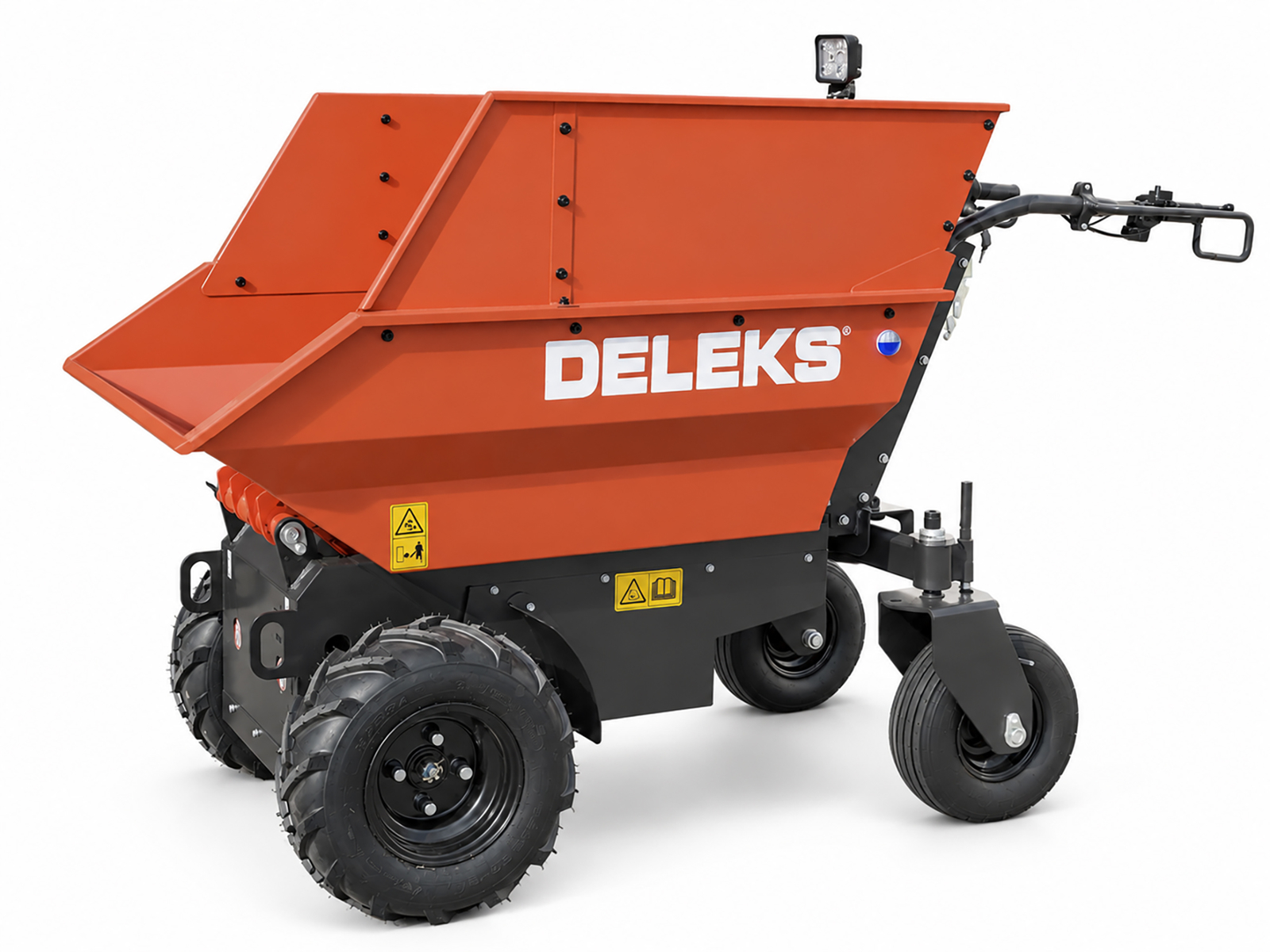

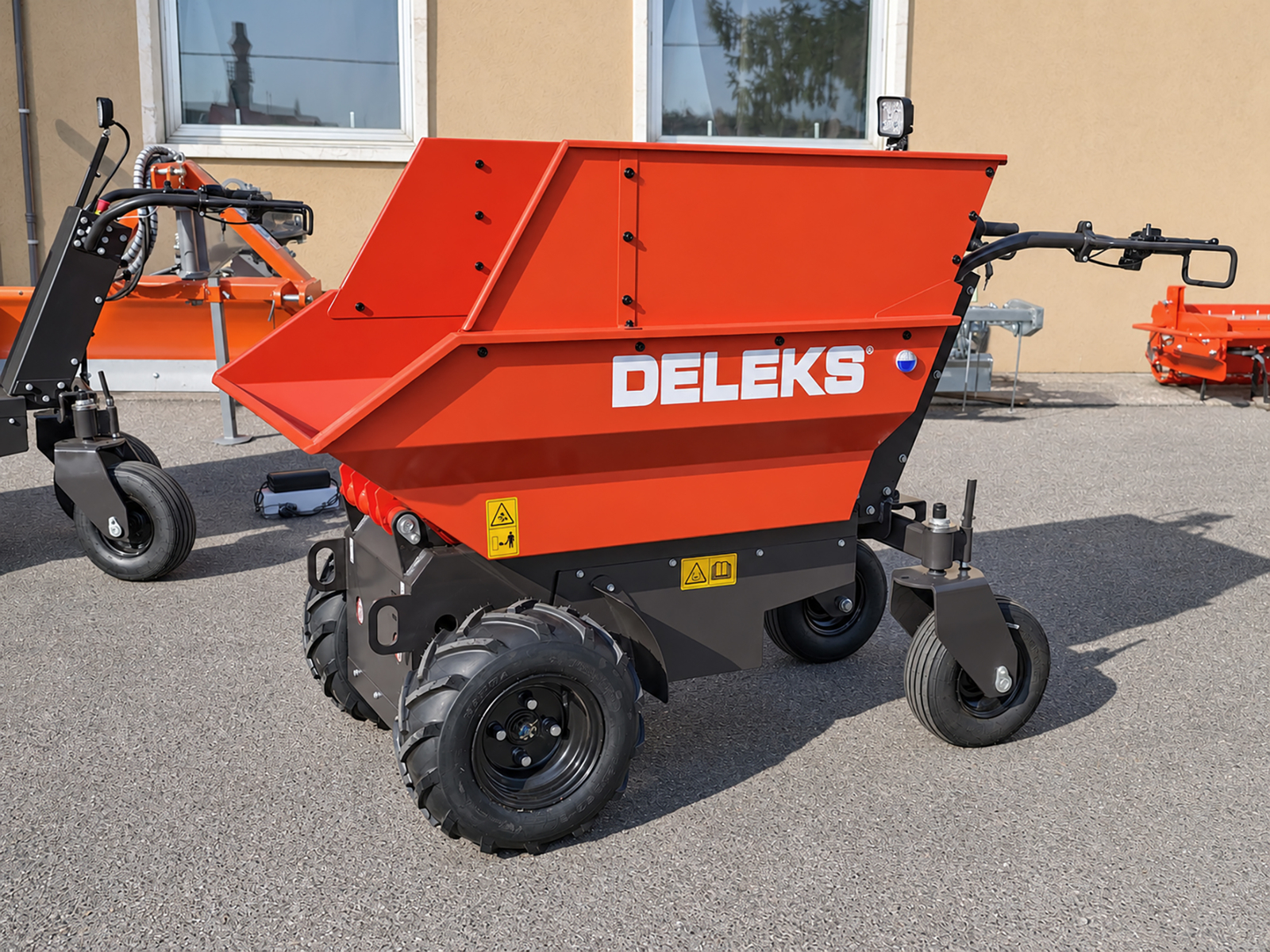

DELEKS® ME500E electric mini dumper: 400 kg rated load (max 500 kg), removable 48V 32Ah lead-acid battery, up to 10 hours of autonomy. Dumper bed with electric tipping, electric drive and electromagnetic brake.
A professional, 100% electric solution for transporting soil, sand, gravel, rubble, wood and building materials on construction sites, farms, greenhouses, stables and in landscaping work.
400 kg rated load (500 kg maximum load) – Up to 10 hours of autonomy – Removable lead-acid battery – Electromagnetic brake
30 cm high metal side extensions included in the price, to increase the load volume of the bed.

Applications
The DELEKS® ME500E electric mini dumper is designed for the professional transport of materials in several sectors:

• Construction and renovation
• Landscaping and green maintenance
• Riding stables, stables and greenhouses
• Farms

It is suitable for transporting soil, sand, gravel, rubble, wood, brushwood and building materials.
It can be used together with DELEKS® mini excavators to make material handling easier and increase productivity on site.

Slopes
Maximum uphill slope: up to 15°*
Maximum side slope: up to 10°*
*With loads up to 100 kg, on firm, dry ground (asphalt, concrete, loading ramps). The limits are lower as the load increases and on soft, wet or uneven ground. The values for each load range are given in the “Slope table by load – ME500E / ME500EL” sheet, available for download at the bottom of the page.

Advantages of the electric system

• Zero exhaust emissions
• Low noise
• Low vibration
• Instant start
• Low maintenance
• Low running costs

Main features

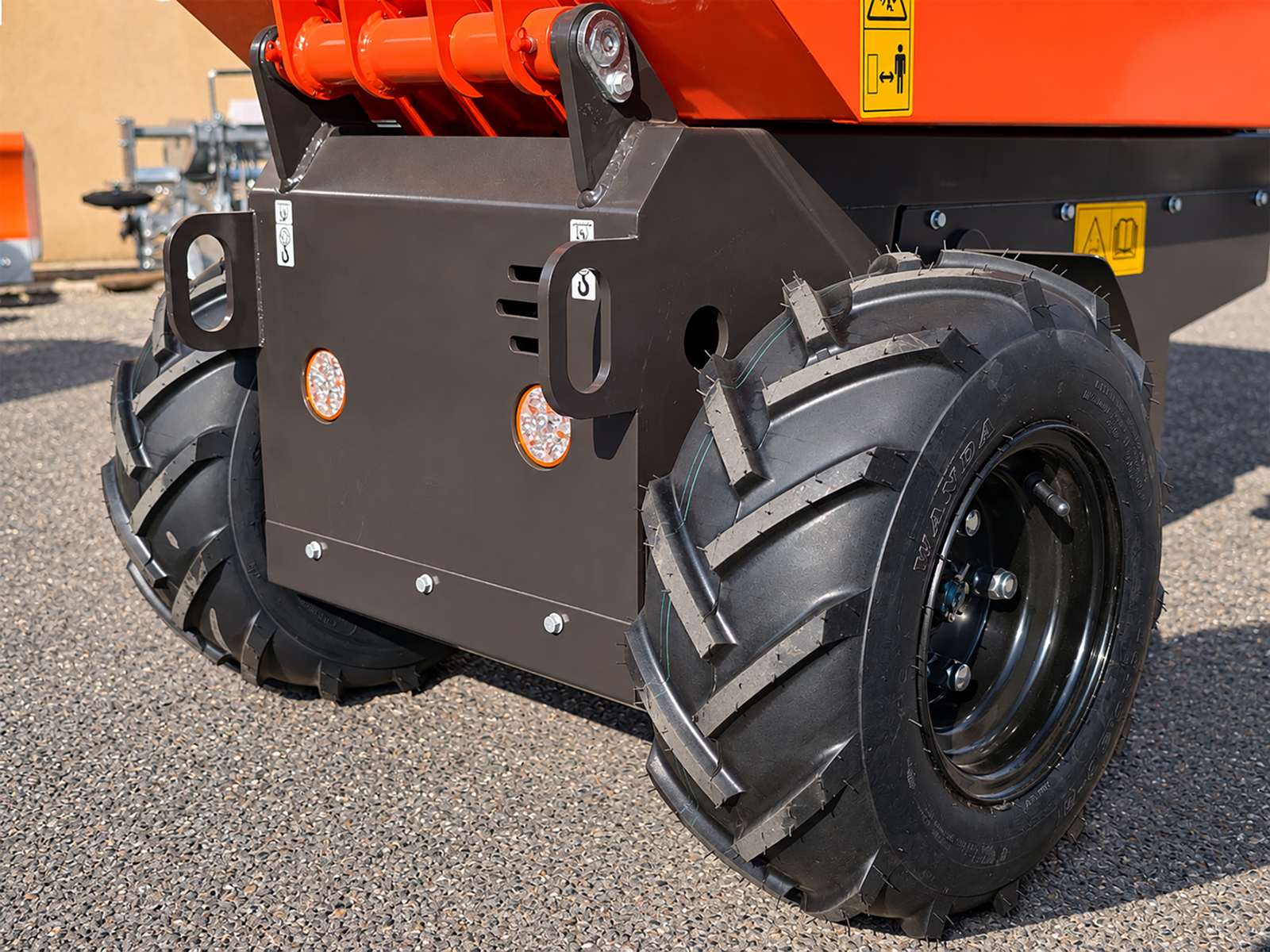

• 4 wide pneumatic wheels for greater stability
  • Front drive wheels

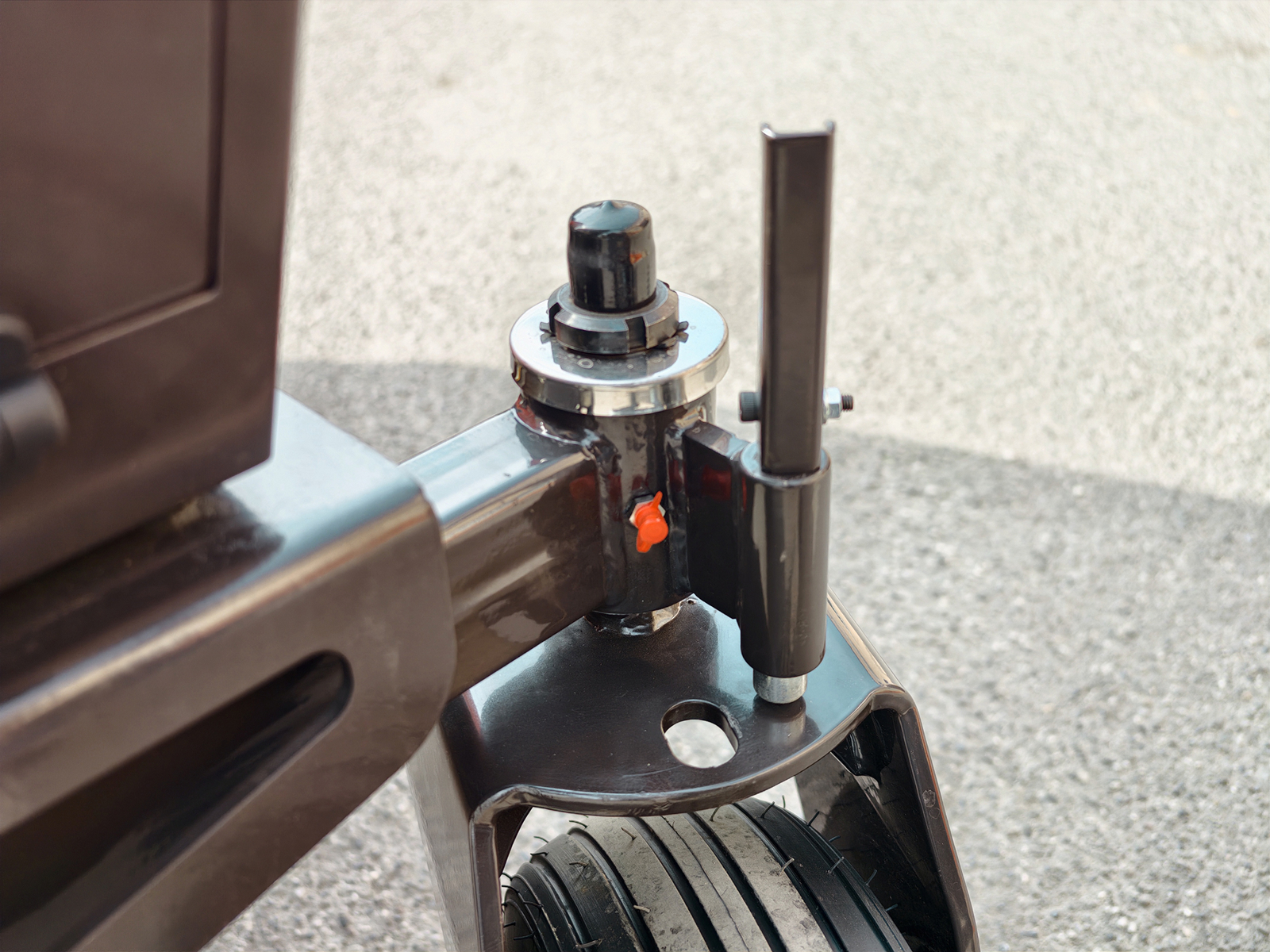

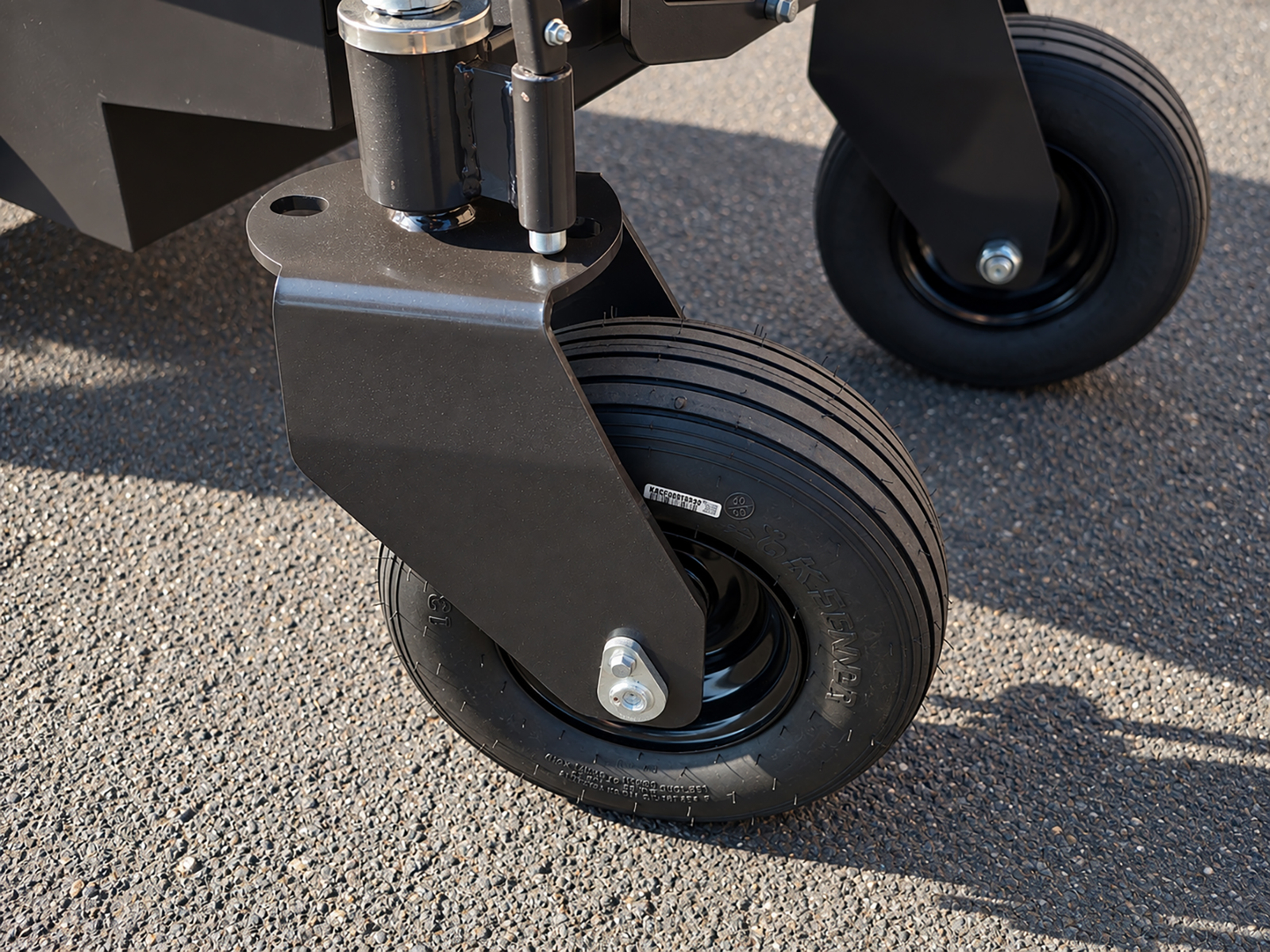

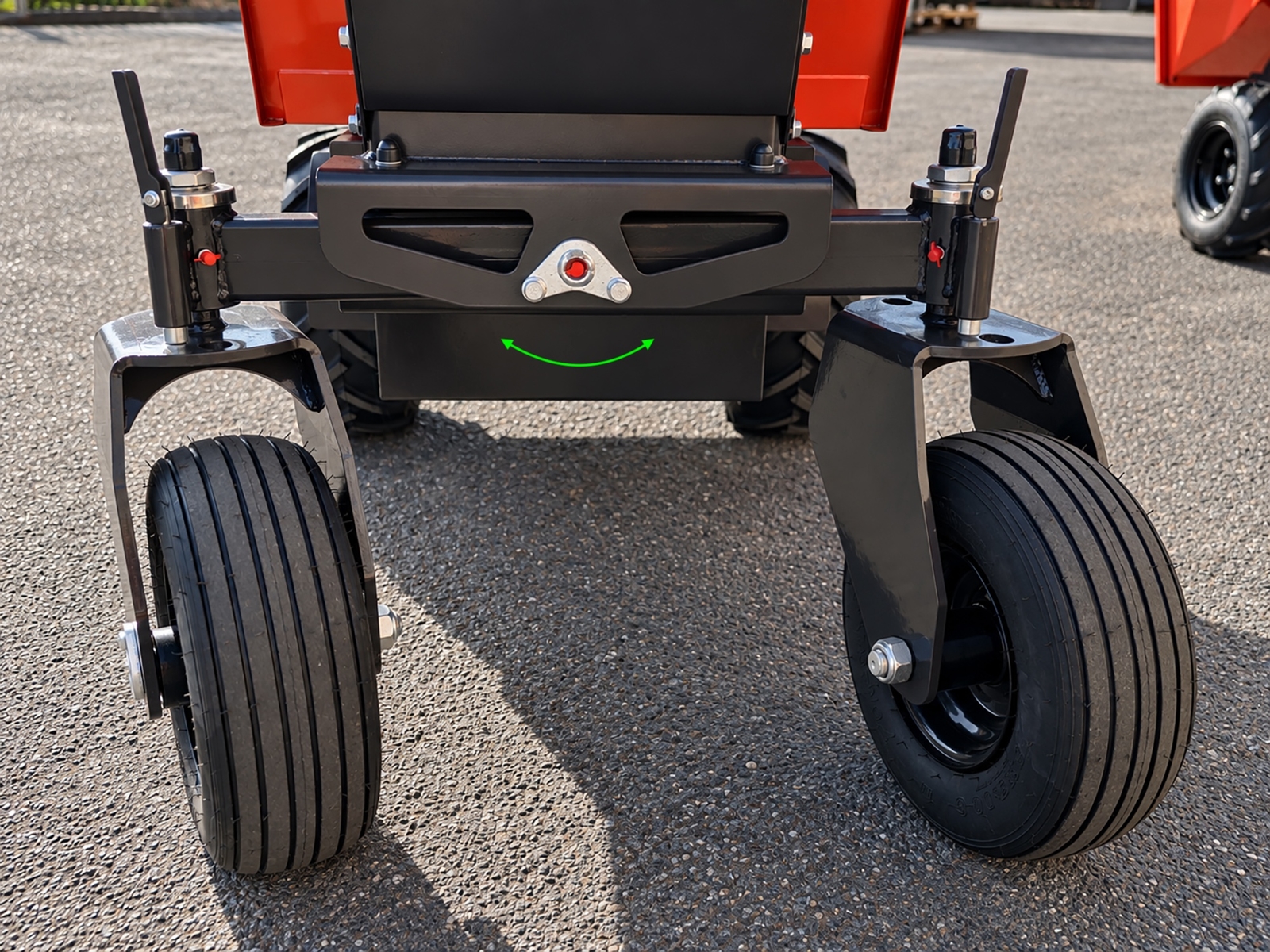

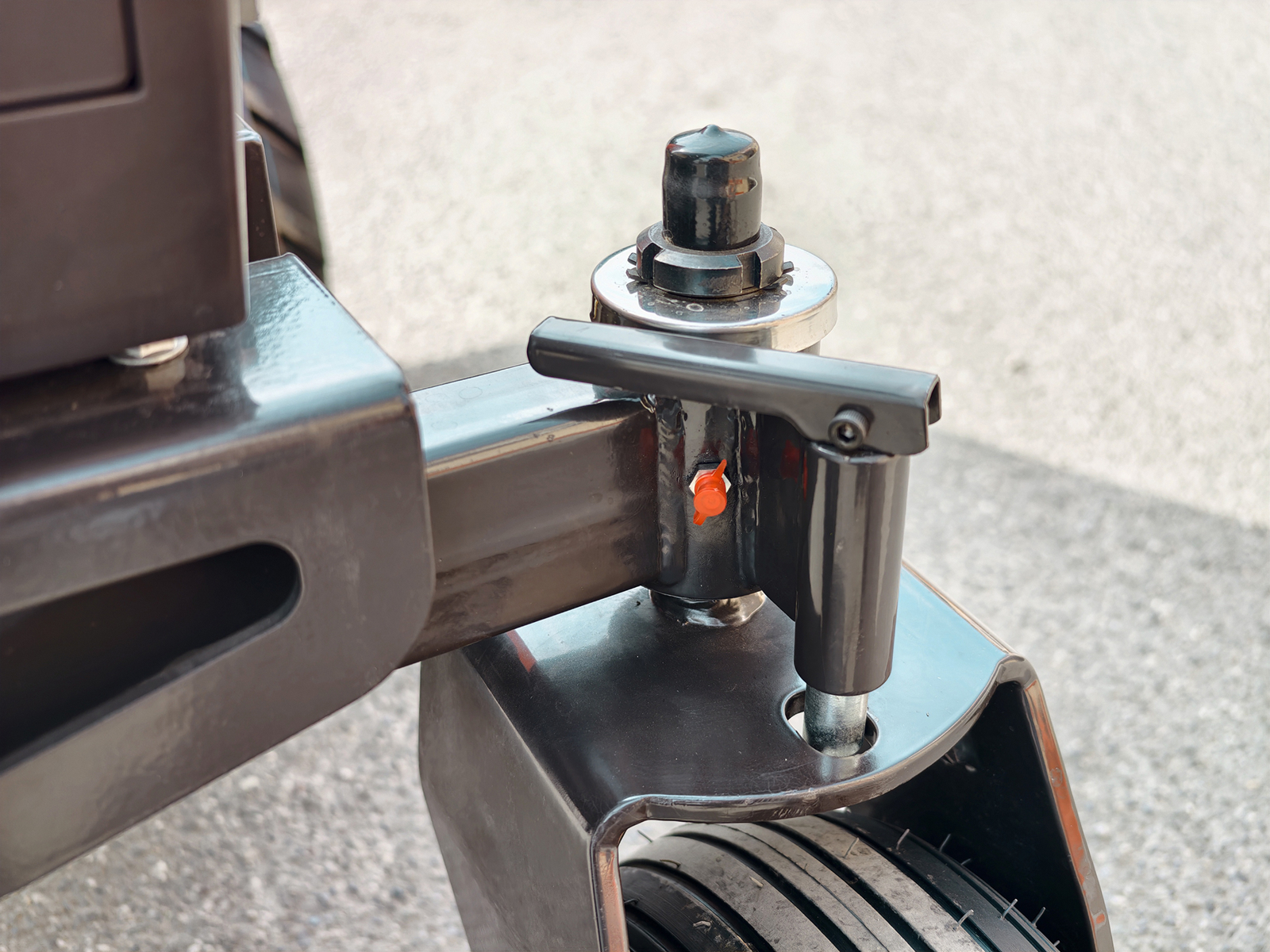

  • Rear swivel wheels with directional lock, to be locked in the straight position with loads over 100 kg
  • High manoeuvrability even in confined spaces
  • Low ground impact

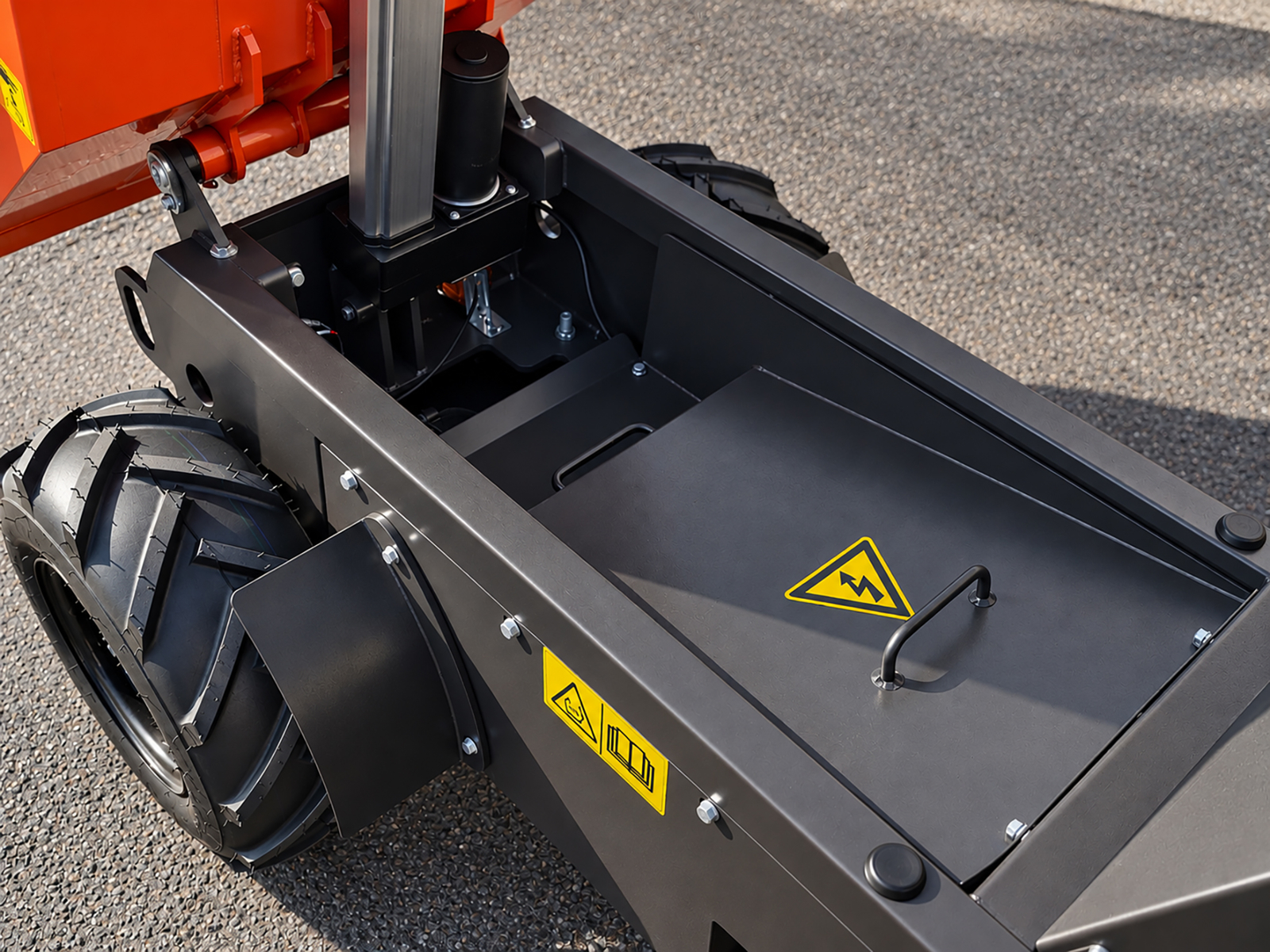

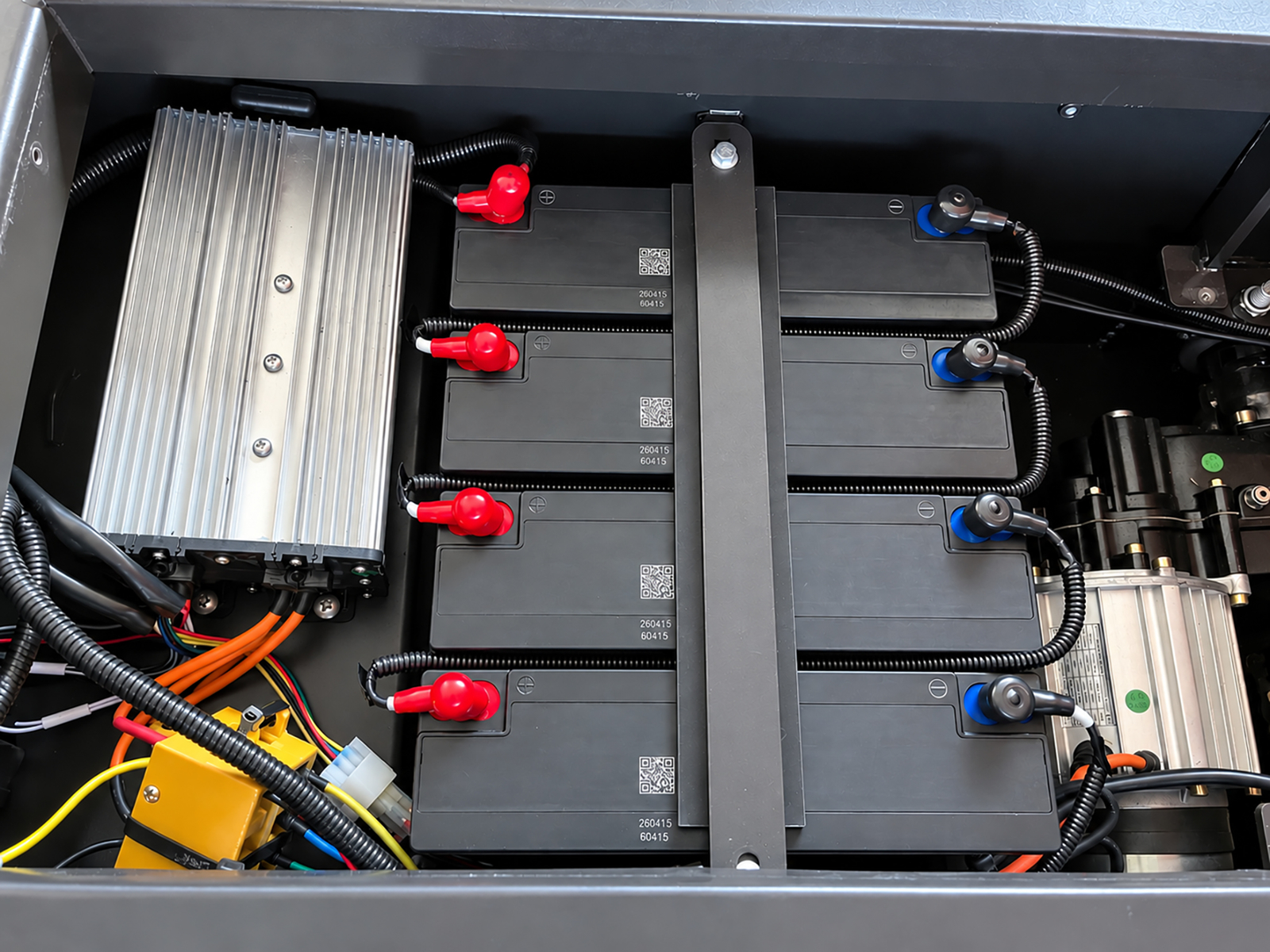

• Removable 48V 32Ah lead-acid battery

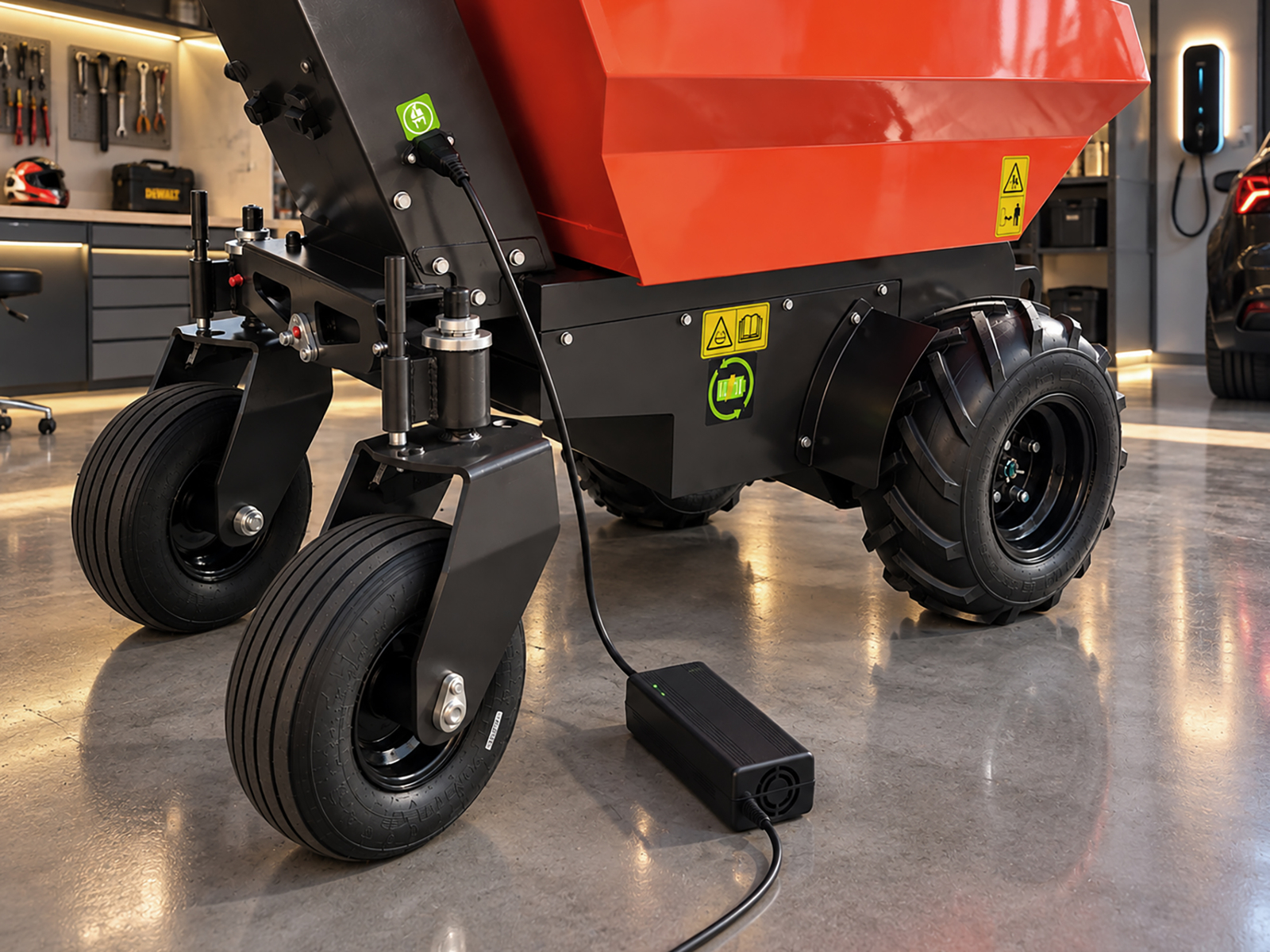

  • Charging via 220V domestic socket

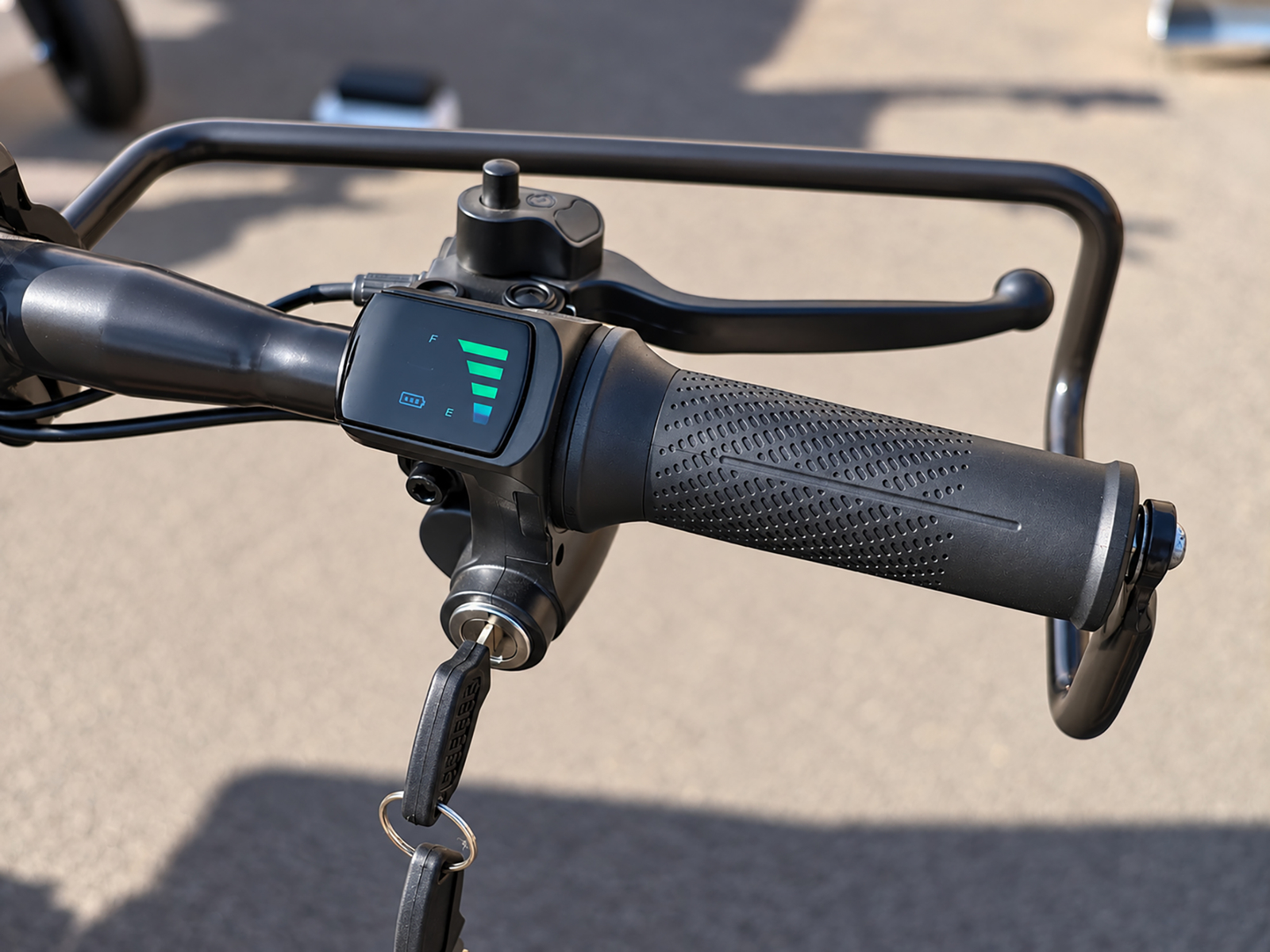

• Key start

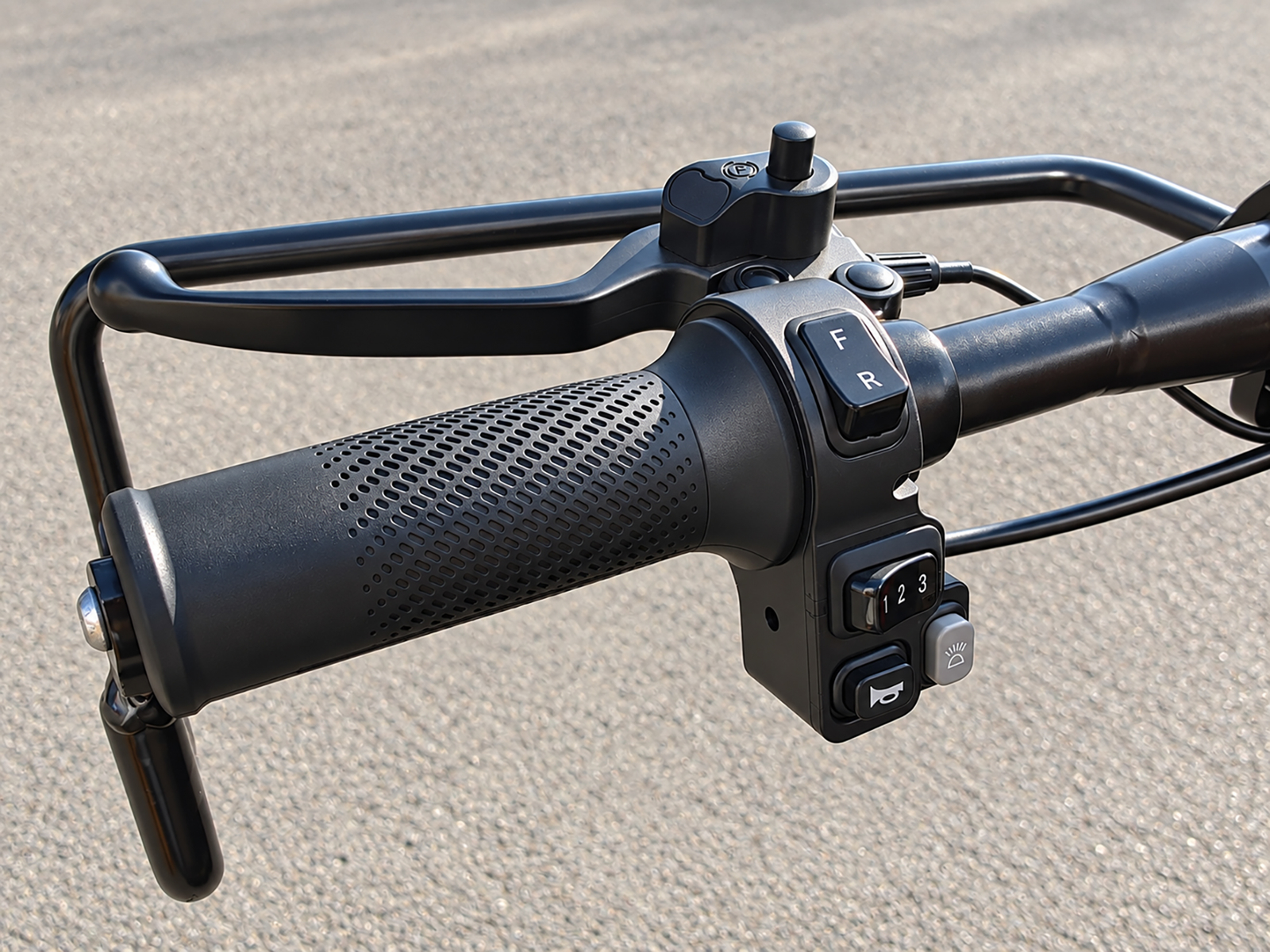

• Transmission:
  • 3 forward speeds
  • 1 reverse

Dimensions
See the PDF document at the bottom of the page.

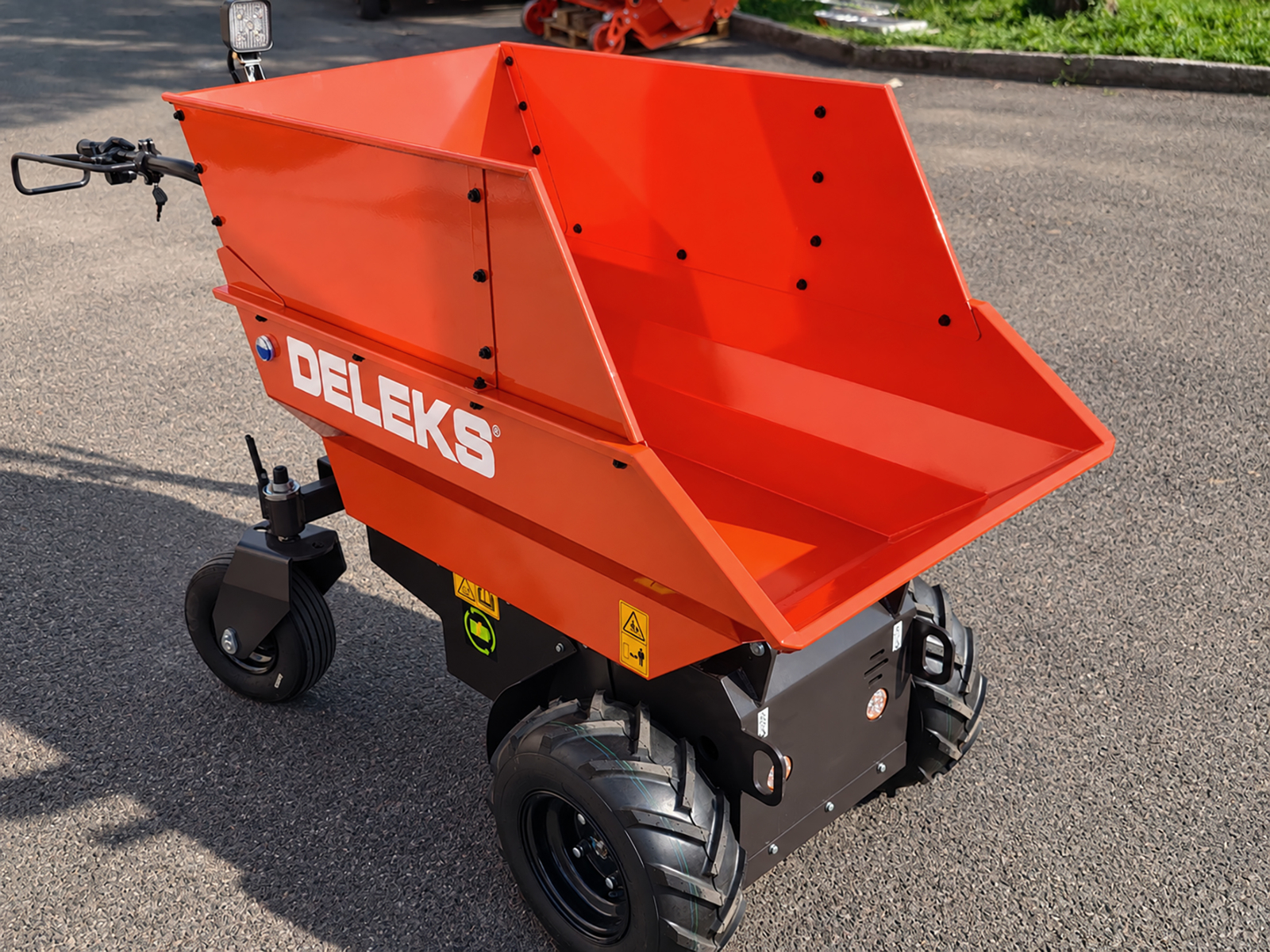

Electric tipping dumper bed

• High-strength steel structure
• 30 cm side extensions
• Ribbed reinforced floor
• Also suitable for sandy materials

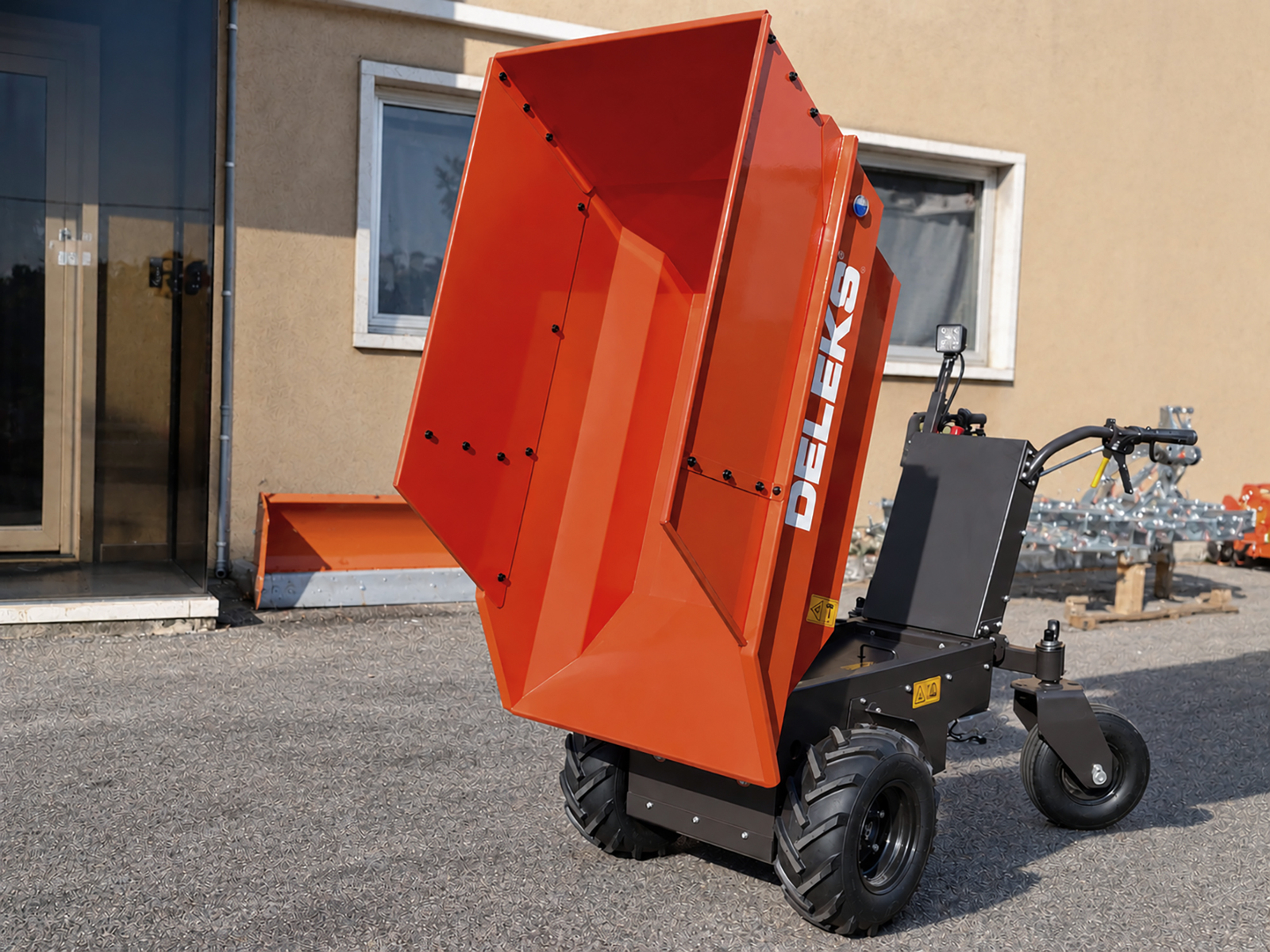

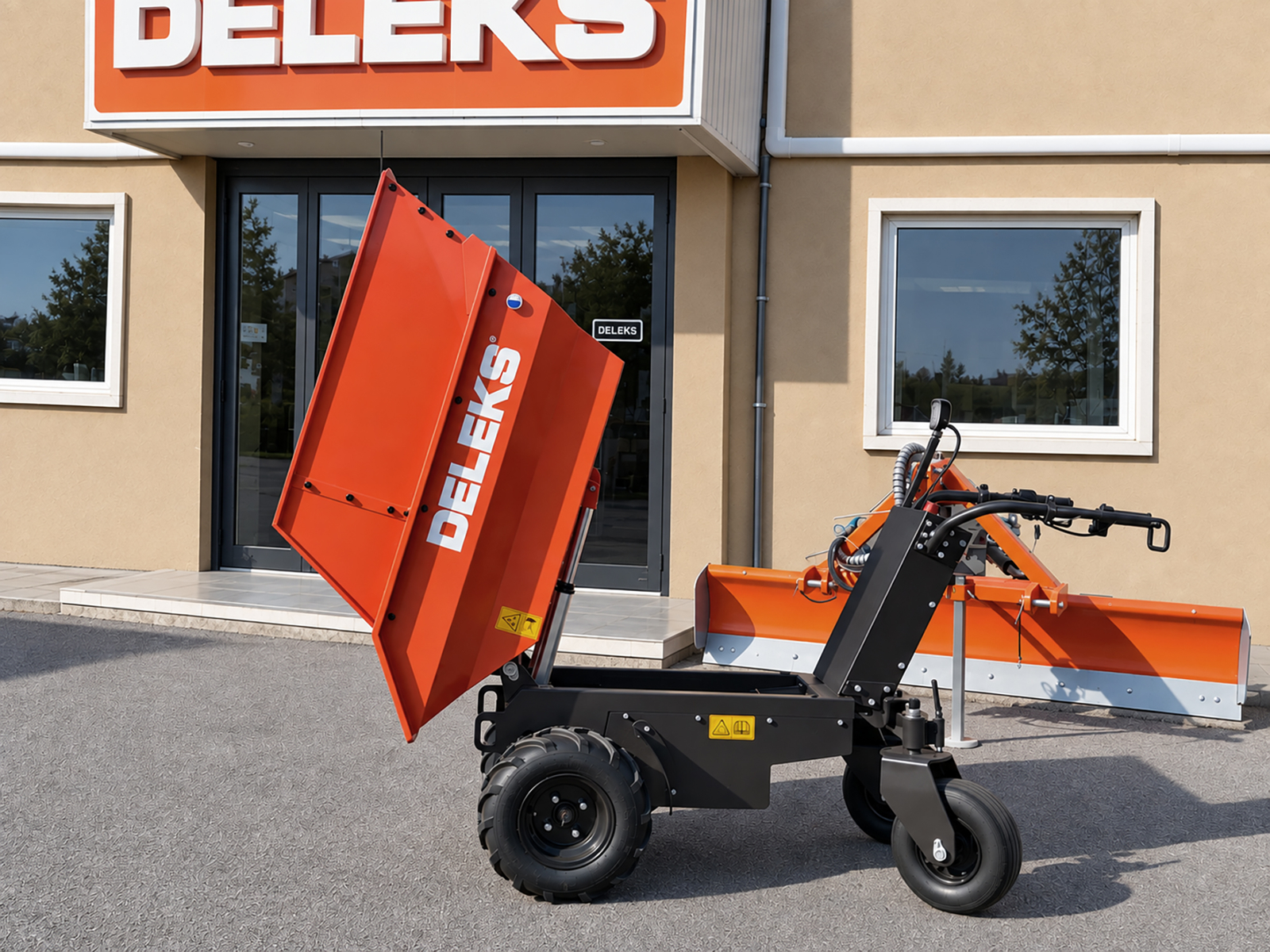

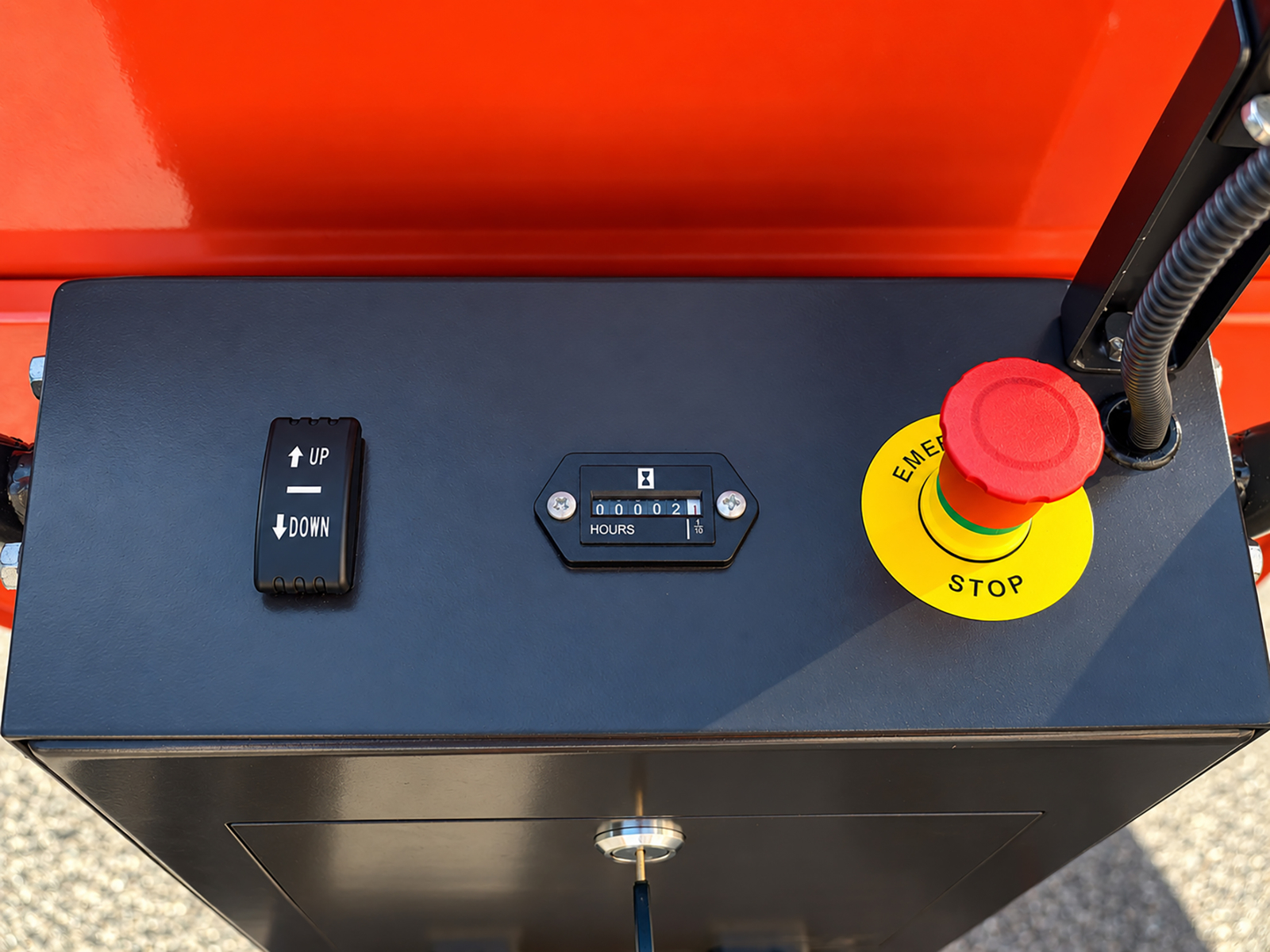

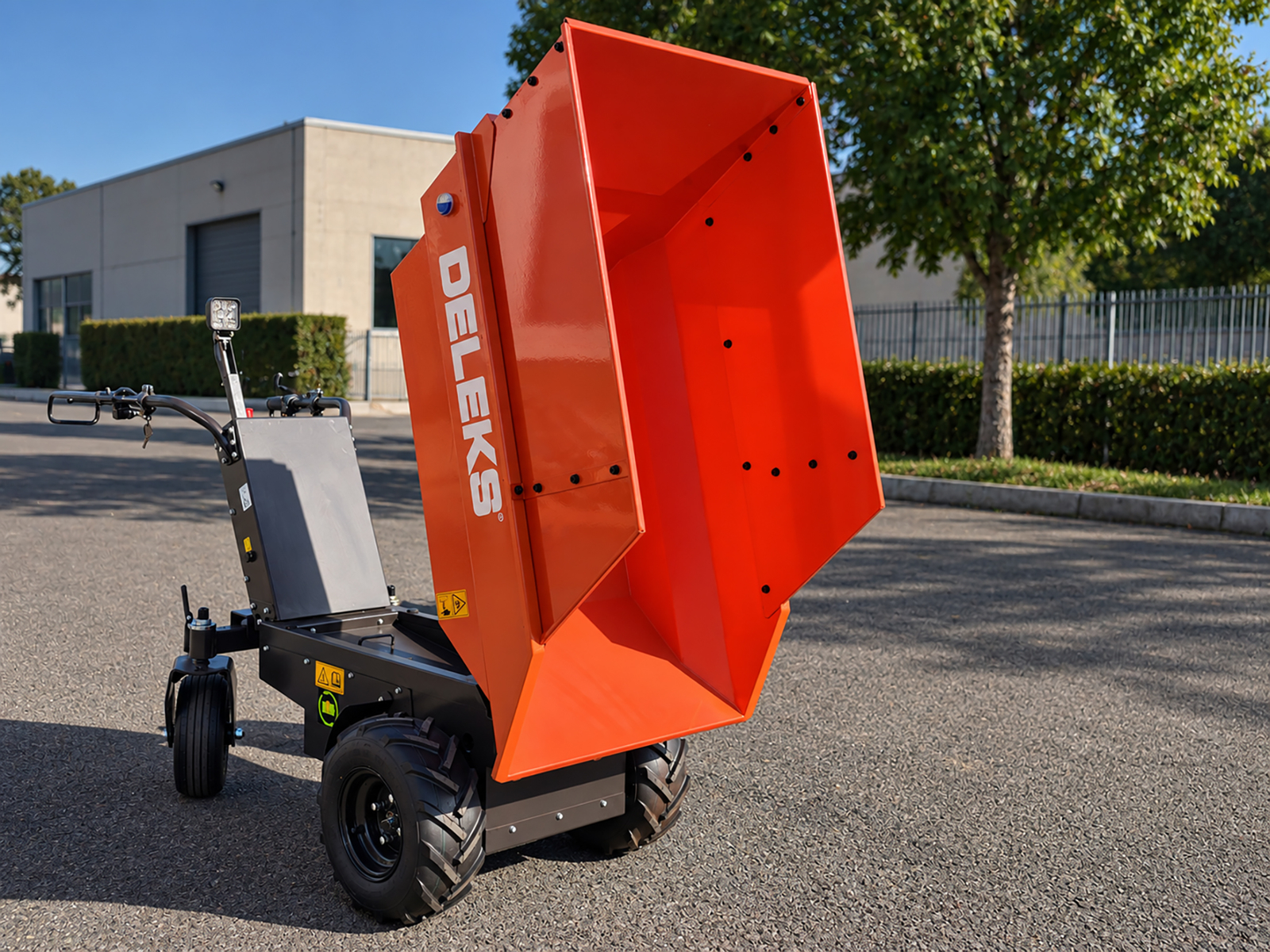

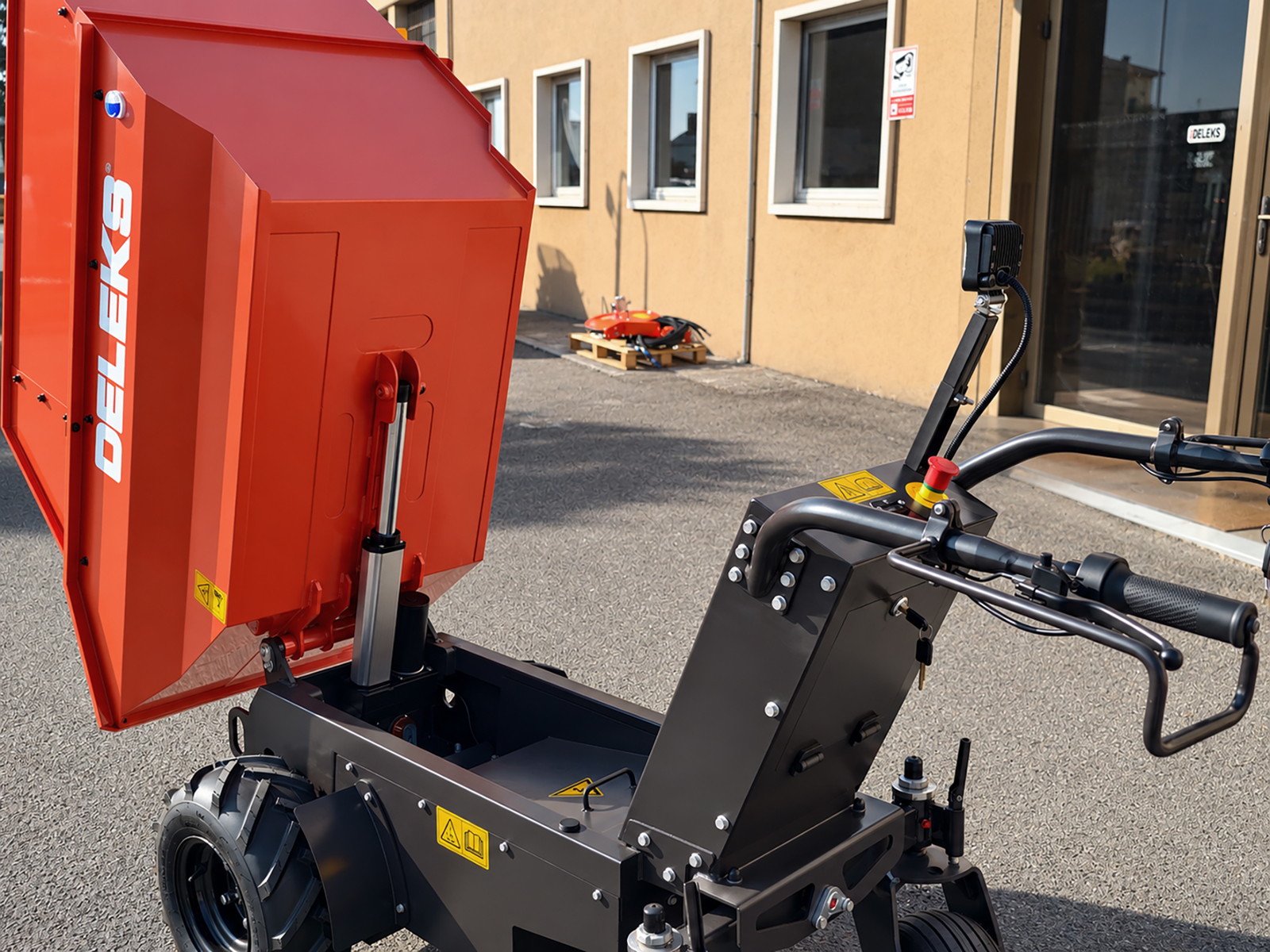

• Tipping by electrically operated actuator
• Maximum tipping angle: 78°
• Partial or full tipping

Performance and technical data

• Rated load: 400 kg (maximum load 500 kg)
• Battery autonomy: 8–10 hours, depending on use
• Charging time: approx. 8 hours (from 20% residual charge)
• Battery: lead-acid 48V – 32Ah, removable
• Charger: output 48–59V, charging current 3A
• Electric motor: 0.8 kW
• Speed:
  • Forward: max 5 km/h
  • Reverse: max 1 km/h
• Electromagnetic brake
• Bed capacity: 0.22 m³
• Operating weight: 210 kg

Comfort and safety

• 2 x 30W LED headlights for working in low-visibility conditions
• Handle vibration: 2 m/s²
• Sound level: 86 dB

Standard equipment

• Pair of ignition keys
• Battery charger

Battery warranty and technical support

1. 12-month commercial warranty on the battery against manufacturing defects. The warranty is valid provided that the machine and the battery are used and maintained in accordance with the operating instructions. Normal capacity loss, deep discharge, overcharging, incorrect storage and any improper use are excluded.
2. The battery is replaceable.
3. Spare batteries will be available in the long term, for a minimum period of 10 years.
4. Full assistance and technical support through DELEKS® branches and headquarters.

Documentation included

• EC Declaration of Conformity
• Invoice / receipt
• Operation and maintenance manual
