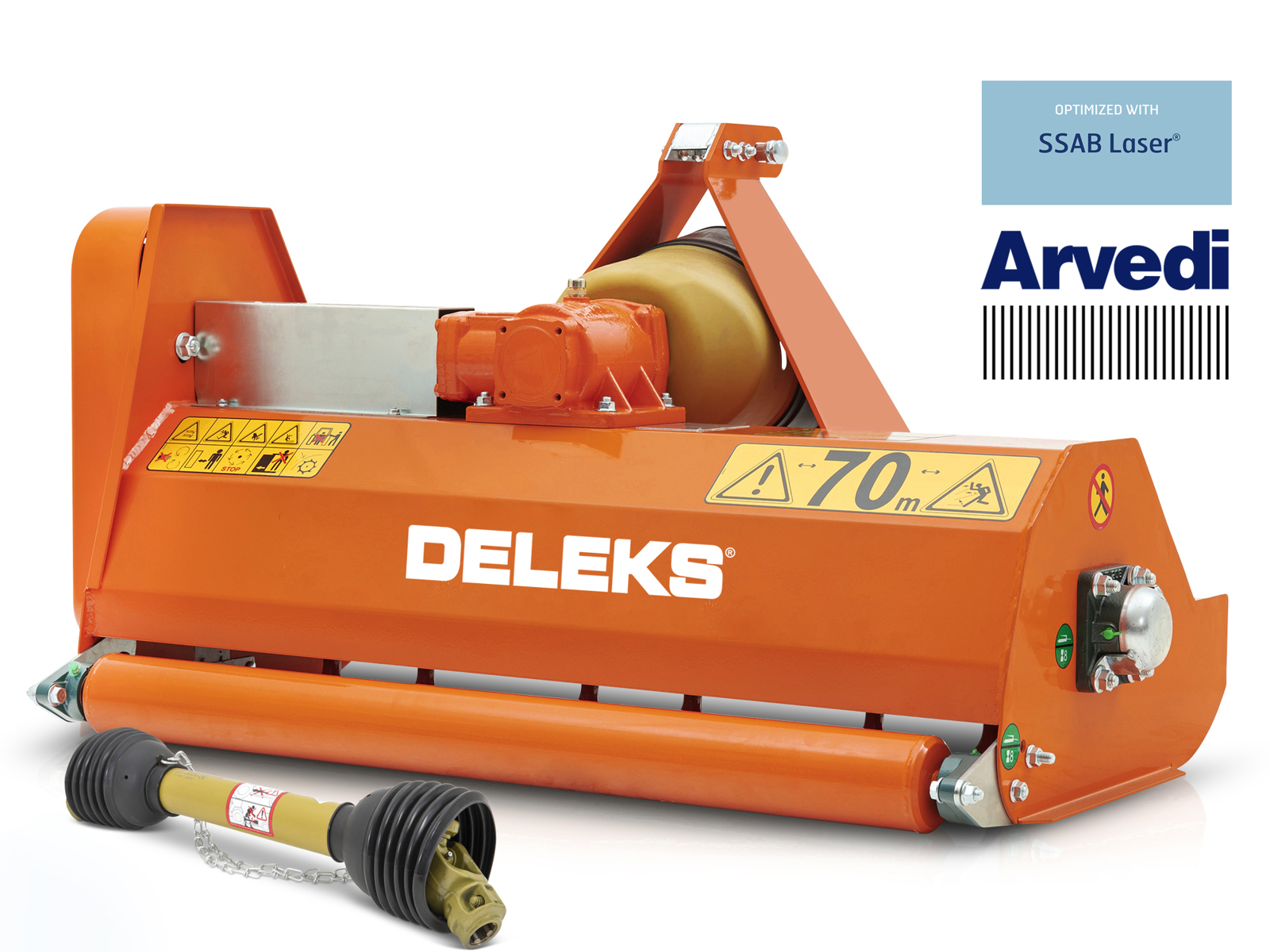

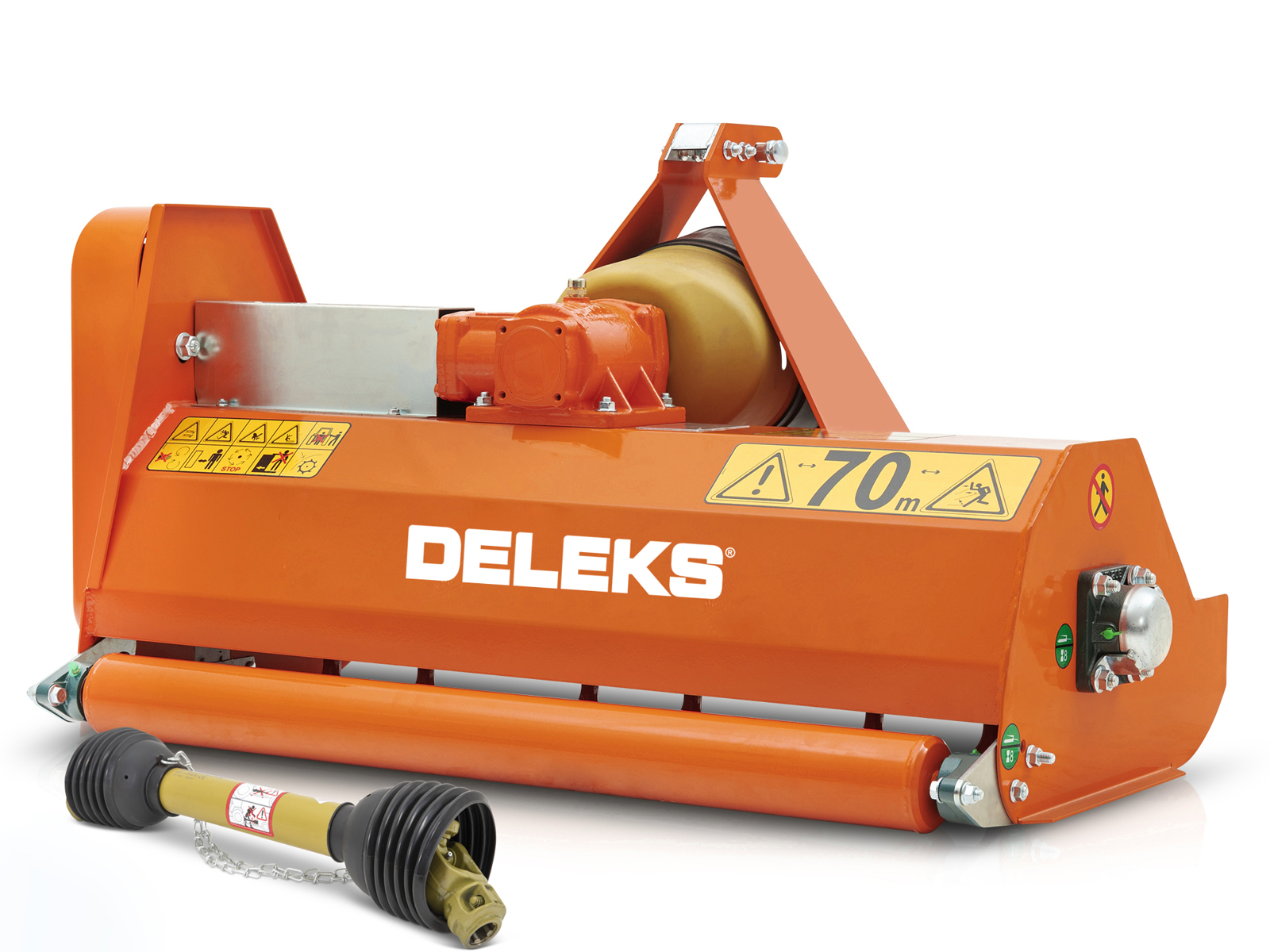

Flail Mower for compact tractors - 120cm - Japanese tractors
Unpacking by Alberto
Field test
DETAILS
120cm working width, Electronically balanced rotor, with hammers or blades | DELEKS® APE-120 for small tractors 16-30Hp, Pto shaft included.
OVERVIEW
The APE-120 flail mower has been designed for low-powered tractors e.g Kubota BX-B, Iseki, Yanmar, John Deere 1-2 Series, Pasquali, etc. 16-30Hp, for garden and farm use. Heat forged hammers for grass, thicker vegetation and small twigs.
Cutting height can be easily changed via an adjustable roller. Fixed universal three point hitch Cat.1.
BENEFITS & FEATURES
Frame entirely made with Swedish SSAB steel.
Rotor made with ARVEDI's tube, electronically balanced.
Hammers attachments HARDOX made.
Gearbox P.T.O. 540 r.p.m. Lombarda Ingranaggi Srl with free-wheel (3 Years warranty)
The lightweight design allows its use with low-powered tractors, on flat ground or on verges.
330g heat forged hammers to shred vegetation up to 2,0cm thick.
Adjustable roller unit.
External belt tensioner.
Pto Shaft CE included.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1200.0 mm |
| Overall width | 1350.0 mm |
| Min / Max cutting height | 20.0 - 35.0 mm |
| Weight | 120.0 kg |
| Overall height | 623.0 mm |
| Tractor Power Range | 16 - 30 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Hood height | 317.0 mm |
| Spacing between the 2 lower points | 380.0 - 580.0 mm |
| Number of Hammers | 20 |
| Maximum cutting diameter | 10.0 - 20.0 mm |
| Overall length | 640.0 mm |
| Distance between pto attachment and ground | 385.0 mm |
| Main hood thickness | 3.0 mm |
| Sides thickness | 3.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (3 years warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 3000 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 185.0 mm |
| Transmission: Lower pulley ø | 96.0 mm |
| Transmission: V-Belts quantity | 2 |
| Transmission: V-Belts size | AX35 (889LI) |
| Rotor: diameter | 76.0 mm |
| Rotor: bearings type and size | UCF206 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 330.0 g |
| Hammer: øhole | 11.0 mm |
| Hammer: base width | 80.0 mm |
| Hammer: top width | 14.0 mm |
| Hammer: Diagonal | 75.0 mm |
| Rear roller: diameter | 85.0 mm |
| Rear roller: sheet thickness | 6.3 mm |
| Rear roller: bearings type and size | UCFL204 |
| Pto shaft | CE 2x800 mm |
| Hood length | 525.0 mm |
| Packing sizes | 1400.0*800.0*660.0 mm |
DETAILS
CLOSE120cm working width, Electronically balanced rotor, with hammers or blades | DELEKS® APE-120 for small tractors 16-30Hp, Pto shaft included.
OVERVIEW
The APE-120 flail mower has been designed for low-powered tractors e.g Kubota BX-B, Iseki, Yanmar, John Deere 1-2 Series, Pasquali, etc. 16-30Hp, for garden and farm use. Heat forged hammers for grass, thicker vegetation and small twigs.
Cutting height can be easily changed via an adjustable roller. Fixed universal three point hitch Cat.1.
BENEFITS & FEATURES
Frame entirely made with Swedish SSAB steel.
Rotor made with ARVEDI's tube, electronically balanced.
Hammers attachments HARDOX made.
Gearbox P.T.O. 540 r.p.m. Lombarda Ingranaggi Srl with free-wheel (3 Years warranty)
The lightweight design allows its use with low-powered tractors, on flat ground or on verges.
330g heat forged hammers to shred vegetation up to 2,0cm thick.
Adjustable roller unit.
External belt tensioner.
Pto Shaft CE included.
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Working width | 1200.0 mm |
| Overall width | 1350.0 mm |
| Min / Max cutting height | 20.0 - 35.0 mm |
| Weight | 120.0 kg |
| Overall height | 623.0 mm |
| Tractor Power Range | 16 - 30 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Hood height | 317.0 mm |
| Spacing between the 2 lower points | 380.0 - 580.0 mm |
| Number of Hammers | 20 |
| Maximum cutting diameter | 10.0 - 20.0 mm |
| Overall length | 640.0 mm |
| Distance between pto attachment and ground | 385.0 mm |
| Main hood thickness | 3.0 mm |
| Sides thickness | 3.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (3 years warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 3000 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 185.0 mm |
| Transmission: Lower pulley ø | 96.0 mm |
| Transmission: V-Belts quantity | 2 |
| Transmission: V-Belts size | AX35 (889LI) |
| Rotor: diameter | 76.0 mm |
| Rotor: bearings type and size | UCF206 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 330.0 g |
| Hammer: øhole | 11.0 mm |
| Hammer: base width | 80.0 mm |
| Hammer: top width | 14.0 mm |
| Hammer: Diagonal | 75.0 mm |
| Rear roller: diameter | 85.0 mm |
| Rear roller: sheet thickness | 6.3 mm |
| Rear roller: bearings type and size | UCFL204 |
| Pto shaft | CE 2x800 mm |
| Hood length | 525.0 mm |
| Packing sizes | 1400.0*800.0*660.0 mm |
Certifications
CLOSE| SSAB Swedish Steel Laser 355C: Specifications and Certification | Download PDF |
| Shell Spirax S2 A 80W-90: Specifications | Download PDF |
Technical charts
CLOSE| ARVEDI / TUBINDUSTRIA: Certification | Download PDF |
