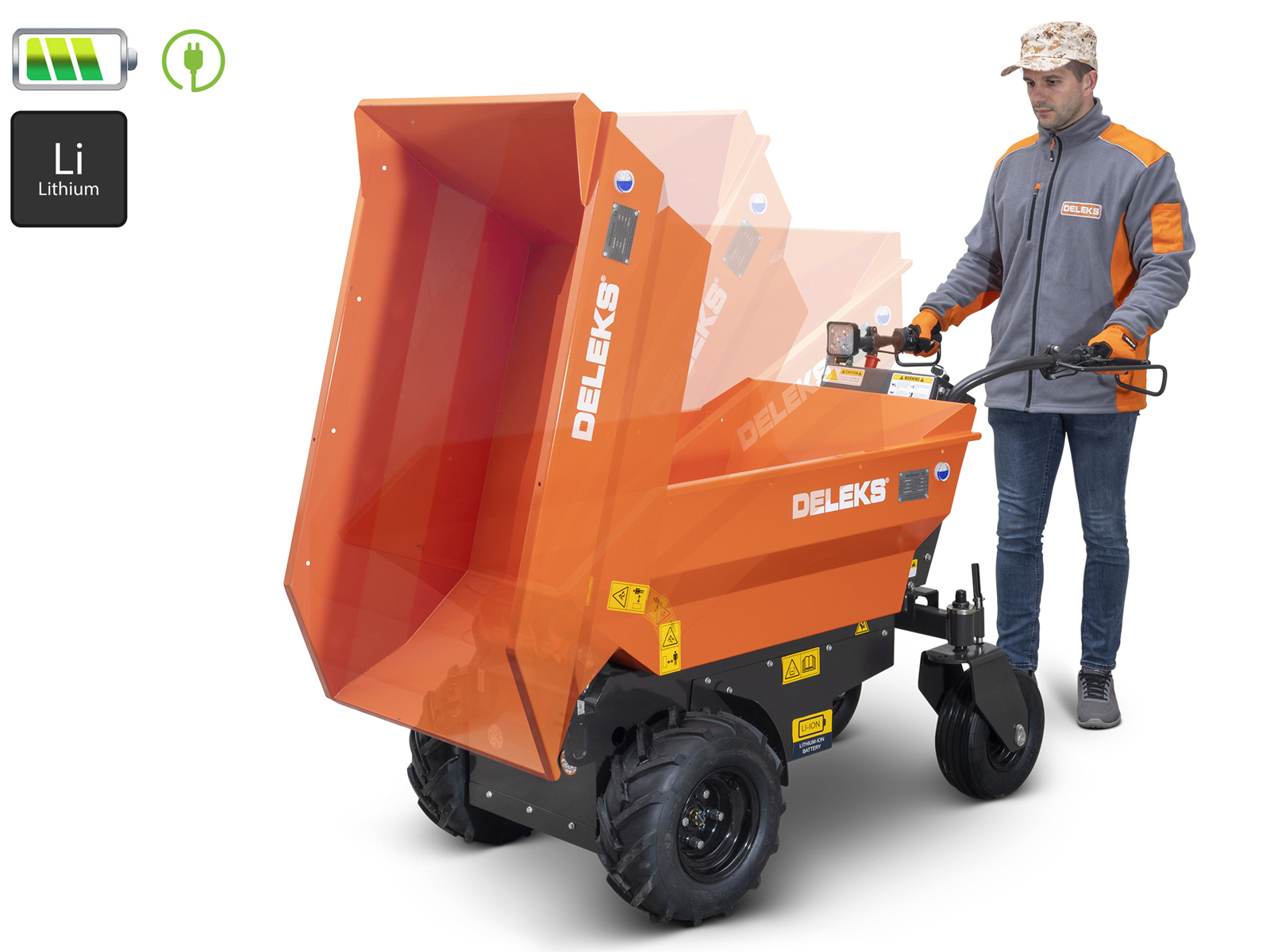

100% electric wheelbarrow, lithium battery, with dumper body with hydraulic tipping

DELEKS® ME500EL electric wheelbarrow, mini dumper, 500 kg capacity, with removable 51.2V 30Ah lithium battery, up to 12 hours autonomy, hydraulic tipping, dumper body and electromagnetic brake.

500 kg load capacity – Up to 12 hours autonomy – Removable lithium battery – Electromagnetic brake

Applications
The DELEKS® ME500EL electric mini dumper is designed for professional material handling in various sectors:

• Construction and renovation
• Landscaping and green maintenance
• Stables, farms and greenhouses
• Agricultural applications

Ideal for transporting soil, sand, gravel, debris, wood and construction materials.
Perfect when used together with DELEKS® mini excavators to improve productivity on site.

Max climbing slope: 30°
Max lateral slope: 15°

Advantages of electric system

• Zero emissions
• Zero noise
• Zero vibrations
• Instant start, no engine issues
• Reduced maintenance
• Very low operating costs

Main features

• 4 wide pneumatic wheels for maximum stability
  • Front driving wheels
  • Rear pivoting wheels with locking pin
  • High maneuverability in tight spaces
  • Minimal ground impact
• Removable lithium battery 51.2V 30Ah
  • Easy charging with standard 220V outlet
• Key start
• Transmission
  • 3 forward speeds
  • 1 reverse speed

Dimensions
See PDF document at the bottom of the page

Hydraulic tipping dumper body

• Heavy-duty steel structure
• Reinforced bottom with ribs
• Suitable for sand and liquid materials
• Electric piston tipping system
• Max tipping angle: 78°
• Partial or full tipping possible

Performance and technical data

• Load capacity: 500 kg
• Battery autonomy: 10–12 hours (depending on use)
• Charging time: approx. 6 hours (100%)
• Battery: Lithium 51.2V – 30Ah (removable)
• Electric motor: 1.54 kW
• Speed:
  • Forward: max 5 km/h
  • Reverse: max 1 km/h
• Electromagnetic brake
• Dumper capacity: 0.22 m³
• Operating weight: 195 kg

Comfort and safety

• 2 LED headlights 30W for low-light conditions
• Handle vibration: 2 m/s²
• Noise level: 86 dB

Standard equipment

• Ignition key set
• Battery charger

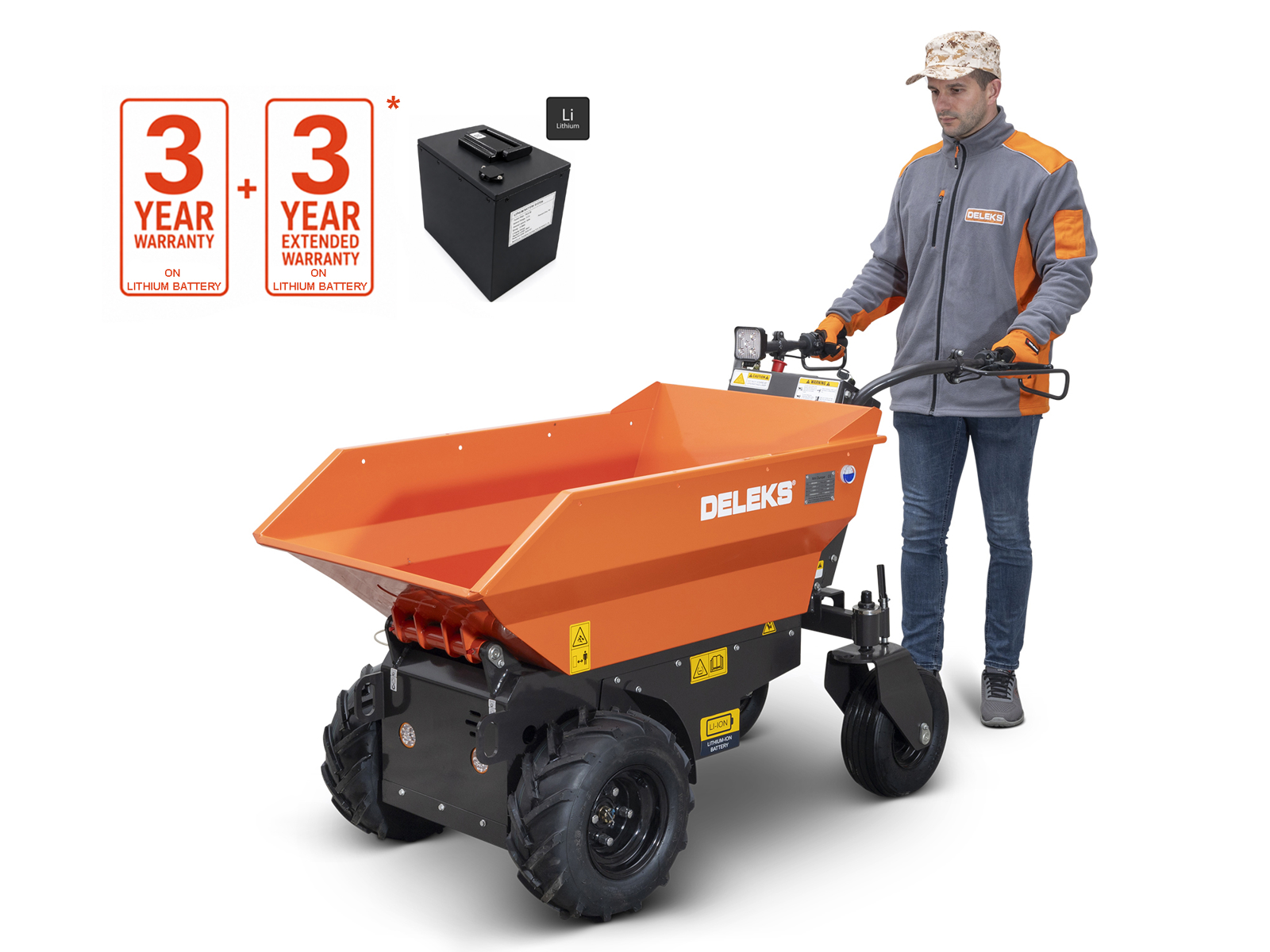

Battery warranty and Technical support

1) 3-year full battery warranty (*): This warranty applies if the battery capacity falls below 75% of its original capacity during the warranty period or before reaching 1,500 charging cycles, whichever occurs first. The battery warranty is valid provided that the machine and battery are used and maintained according to the operating instructions. The warranty does not cover damage resulting from:

• Deep discharge or prolonged storage in a discharged state
• Use of non-approved chargers or charging equipment
• Improper use, misuse or unauthorized modifications to the battery system
• Water ingress, pressure washing or exposure of electronic components to excessive moisture
• Use outside the specified operating conditions

2) The battery is replaceable.

3) Replacement batteries will remain available for the long term, with a minimum availability period of 10 years.

4) Comprehensive service and technical support through our subsidiaries and headquarters.

(*) We optionally offer an extended battery warranty of up to 3 additional years.

This provides you with long-term protection, greater planning security and reliable service.

For further information about the available options and the terms of the extended warranty, please do not hesitate to contact us.

Included documentation

• CE Declaration of Conformity
• Invoice / receipt
• User and maintenance manual
